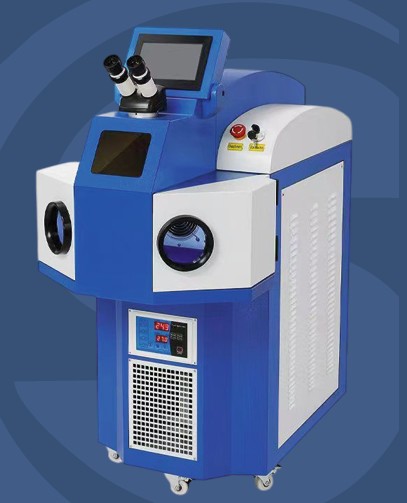

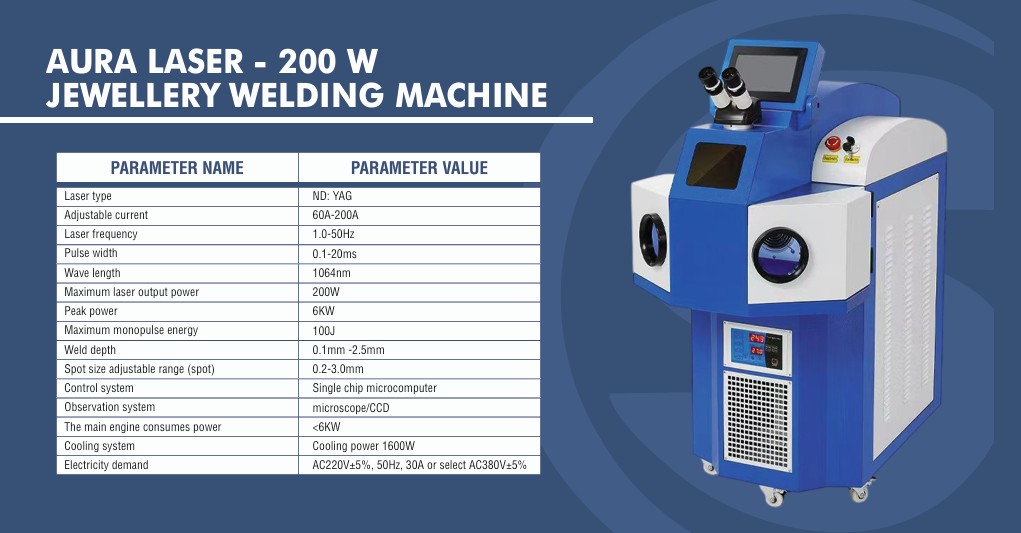

Aura Laser - 200 W Jewellery Welding Machine
Technical Data
| Parameter Name | Parameter Value |
| Laser type | ND: YAG |
| Adjustable current | 60A-200A |
| Laser frequency | 1.0-50Hz |
| Pulse width | 0.1-20ms |
| Wave length | 1064nm |
| Maximum laser output power | 200W |
| Peak power | 6KW |
| Maximum monopulse energy | 100J |
| Weld depth | 0.1mm -2.5mm |
| Spot size adjustable range (spot) | 0.2-3.0mm |
| Control system | Single chip microcomputer |
| Observation system | microscope/CCD |
| The main engine consumes power | <6KW |
| Cooling system | Cooling power 1600W |
| Electricity demand | AC220V±5%, 50Hz, 30A or select AC380V±5% |
