Details

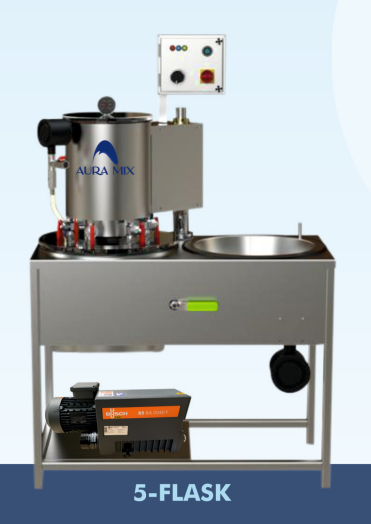

3 | 5 | 6 | 8 - Flask
| Technical Specification | OS-3 | OS-5 | OS-6 |
| Max. Of Flask | 120-140mm | 150mm | 150mm |
| Max. Height of Flask | 200mm | 230mm | 230mm |
| Max. No. of Flask | 3 | 5 | 6 |
| Flask Container | 290mm | 380mm | 380mm |
| Height Flask Container | 255mm | 260mm | 260mm |
| Max. Volume Of Investment Material | 6 Kg | 12 Kg | 16 Kg |
| Stirring Container | 200mm | 280mm | 280mm |
| Height of Stirring Container | 305mm | 315mm | 315mm |
| Motor Fixing | Dual Speed | Dual Speed | Dual Speed |
| Type of Electric Current(3 Phase) | 400V, 50Hz I, 3KW | 400V, 50Hz I, KW | 400V, 50Hz 1, 3KW |
| Dimension (WXDXH) | 760 x 370 x 770mm | 1015 x 550 x 1355mm | 1015 x 550 x 1355mm |
| Gross Weight | 120 Kg | 150 Kg | 150 Kg |
| Vaccum Pump & Oil in to be changes after | 25 CFM & 150 Flask | 40 CFM & 150 Flask | 63 CFM & 150 Flask |
