Details

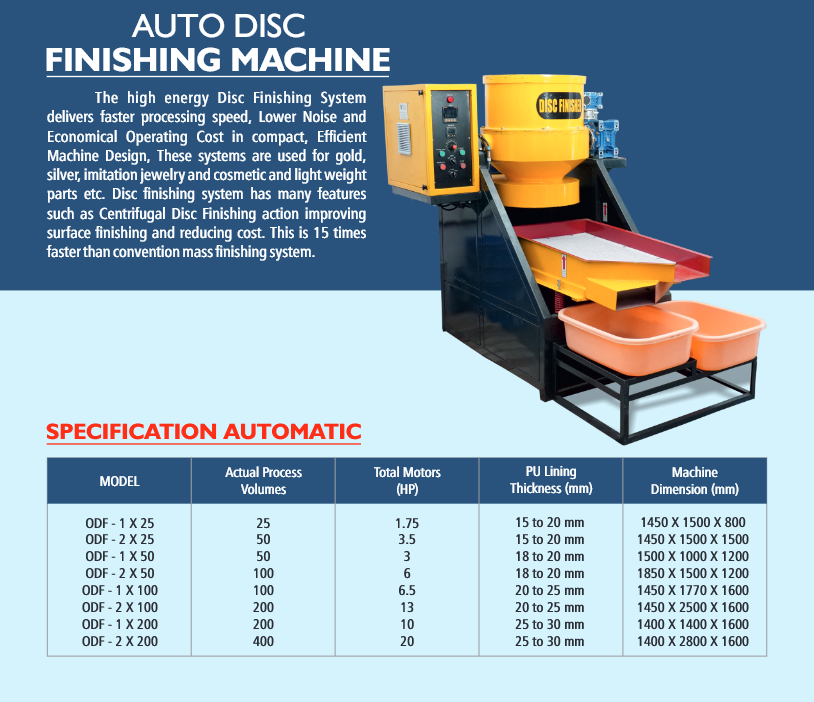

The high energy Disc Finishing System delivers faster processing speed, Lower Noise and Economical Operating Cost in compact, efficient Machine Design, These systems are used for gold, silver, imitation jewelry and cosmetic and light weight parts etc. Disc finishing system has many features such as Centrifugal Disc Finishing action improving surface finishing and reducing cost. This is 15 times faster than convention mass finishing system.
Technical Data
| Model | Actual Process Volumes | Total Motors (HP) | PU Lining Thickness (mm) | Machine Dimension (mm) |
| ODF - 1 X 25 | 25 | 1.75 | 15 to 20 mm | 1450 X 1500 X 800 |
| ODF - 2 X 25 | 50 | 3.5 | 15 to 20 mm | 1450 X 1500 X 1500 |
| ODF - 1 X 50 | 50 | 3 | 18 to 20 mm | 1500 X 1000 X 1200 |
| ODF - 2 X 50 | 100 | 6 | 18 to 20 mm | 1850 X 1500 X 1200 |
| ODF - 1 X 100 | 100 | 6.5 | 20 to 25 mm | 1450 X 1770 X 1600 |
| ODF - 2 X 100 | 200 | 13 | 20 to 25 mm | 1450 X 2500 X 1600 |
| ODF - 1 X 200 | 200 | 10 | 25 to 30 mm | 1400 X 1400 X 1600 |
| ODF - 2 X 200 | 400 | 20 | 25 to 30 mm | 1400 X 2800 X 1600 |
