Details
- PLC Control Panel System
- Heating program settable with delay start.
- 10 Burnout Cycle Memory.
- Each Cycle With 16 Ramp Temperatures.
- Ramp and Holding Time
- Heat Resistant stainless steel Chamber & Revolving Plate.
- Minimum Het loose.
- Air cooling system.

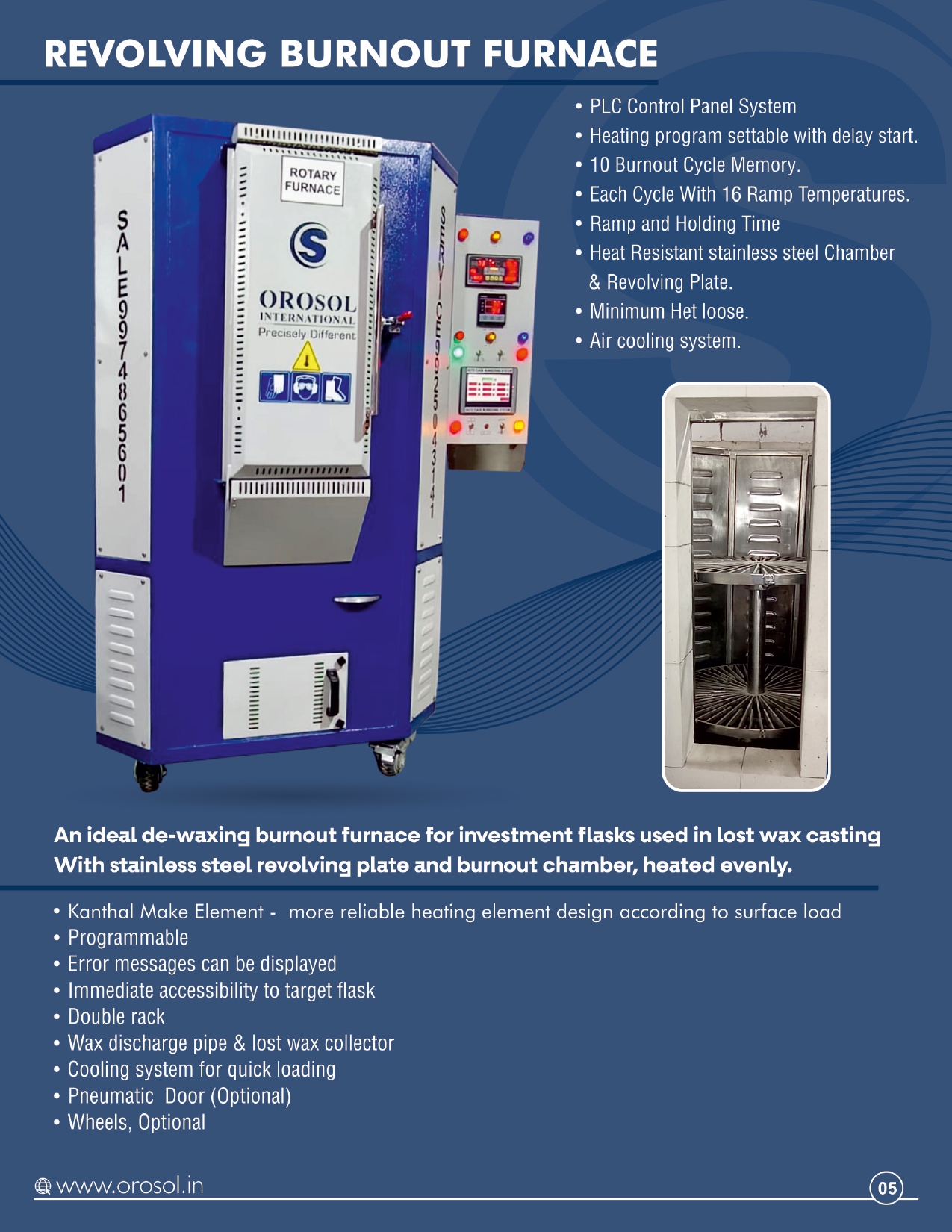

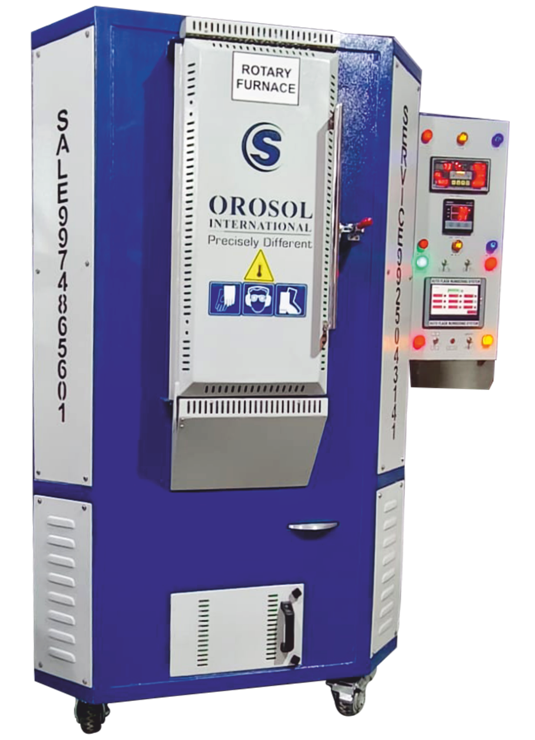

An ideal de-waxing burnout furnace for investment flasks used in lost wax casting With stainless steel revolving plate and burnout chamber, heated evenly.
- Kanthal Make Element - more reliable heating element design according to surface load
- Programmable
- Error messages can be displayed
- Immediate accessibility to target flask
- Double rack
- Wax discharge pipe & lost wax collector
- Cooling system for quick loading
- Pneumatic Door (Optional)
- Wheels, Optional
Technical Data
| MODAL NO | AF6 | AF9 | AF12 | AF18 | AF24 | AF30 |
| Flask Capacity (flanged) | 6 | 9 | 12 | 18 | 24 | 30 |
| Number of Racks | Single | Single | Single | Double | Double | Double |
| Max Flask Height | 250mm | 250mm | 250mm | 300mm | 300mm | 300mm |
| Max Flask Diameter | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm |
| Maximum Operating Temperature (800c° & 900c° Optional) | 750c° | 750c° | 750c° | 750c° | 750c° | 750c° |
| Turntable Speed(rpm) | 2 | 2 | 2 | 2 | 2 | 2 |
| Installed Power | 9 Kw | 10 Kw | 12 Kw | 15 Kw | 16 Kw | 18 Kw |
| Power Of Revolving Motor (HP) | 0.25 | 0.25 | 0.25 | 0.5 | 0.5 | 0.5 |
| Weight (Aprrox) | 450kg. | 500kg. | 550kg. | 650kg. | 700kg. | 750kg. |
